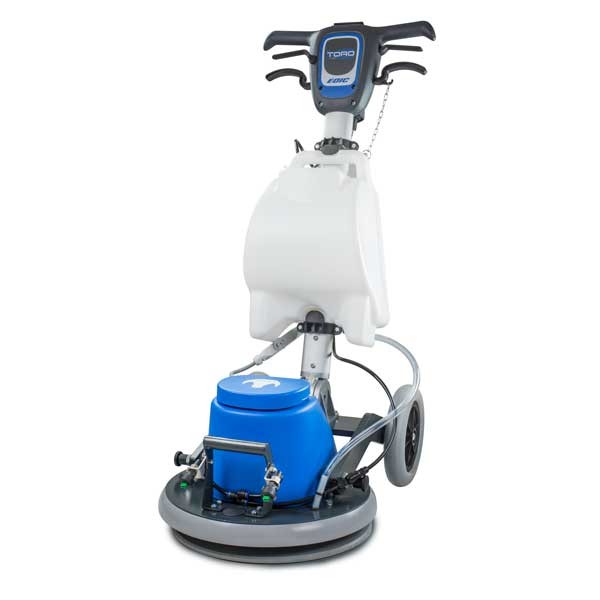

EDIC® HD Orbital Floor Machine

The new TORO HD single disc orbital floor machine that makes stripping, cleaning and polishing of all types of floors significantly easier, simpler and quicker.

The TORO HD orbital floor scrubber is an all-surface cleaning, scrubbing, sanding, polishing, interim, and grinding machine that cleans and restores carpet, stone, tile and grout, wood, vinyl, concrete, epoxy, and other surfaces; provides chemical-free stripping, low moisture carpet encapsulation, tile and grout cleaning and more in ONE MACHINE! Ideal for contractors and restoration professionals.

The TORO HD orbital floor machine combines small oscillations at 1725 RPM with a rotating head at 80 RPM for improved scrubbing performance, efficiency, and speed to get jobs done quickly and easily.

SAFETY: The TORO HD orbital technology provides the user with a floor machine that is much safer and easier to use than a traditional rotary machine. Training is simplified and damage risk to walls and furniture are minimized.

Features & Benefits

  • Orbital agitation requires less time, water, chemical, and heat; reduces splash when compared to a rotary machine
  • Reduces time to strip, scrub and polish
  • Low energy consumption
  • One machine cleans ALL types of floors
  • Low moisture encapsulation carpet cleaning
  • 10” non-marking wheels for easy transport
  • Durable steel frame
  • Tool-FREE pad driver installation with wing nuts
  • Oscillating pump, no priming necessary
  • Scrub pad has 100% contact with the floor
  • Orbital technology makes the TORO HD easy to use and minimizes operator fatigue
  • Ergonomic handle is easily adjustable for different operator heights
  • Cleaning Path: 17” diameter
  • 4-gallon solution tank, standard option
  • Gravity feed, standard option
  • Oscillating pump (no priming necessary) with dual spray jets, standard option
  • TORO HD machine is 109 lbs. with optional 37 lb. weights (up to 2 for an additional 74 lbs.) Provides 183 lbs. for those tough restoration jobs
EDIC
EDIC1725-TES
Data sheet
Model
1725-TES
Head Size
17 inches
Velcro Pad Cover
Yes
Motor
Universal, 1100w
Amps
12 Amps
RPM
1725 RPM Micro Orbits 3/8" Diameter - 80 RPM Rotation
Horsepower
1.5 HP
Spray Jets
Dual, Adjustable, Tool-free Maintenance
Cord
14/3 Gauge Pigtail, Standard Plug
Lift Handle
Yes
Sound Level
62 dB
Motor Head Kickstand
Yes
Wheels
10 inch Diameter
Pump
90 PSI, Oscillating Pump. No Priming Needed
Spray Tank
3.9 Gallons
Weight
109 lbs
Optional Weights
37 lbs. each, 2 maximum
Free-Floating Base
Yes, Full Floor Contact
Dimensions
44"H x 19"W x 28"L
Motor Height Clearance
12.5 inches
